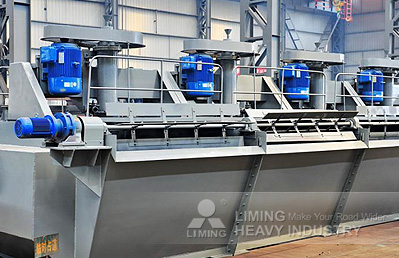

Flotation Machinery
Feeding Size: 0.2-38 m3/min
Capacity: 0.3m³/min
Processing materials：
The machine can be used to separate nonferrous metal, ferrous metal, noble metal, nonmetallic mine, chemical material and recycle mine.
Flotation machine is widely used in gold, copper, lead and zinc, and other metals mines for useful minerals in sorting operations.
1. High inhalation, low power.
2. Each chute can inhale gas, sink magma, separate.
3. There is no need of accessory equipments horizontal equipment, it is easy to change the flow chart.
4. The cycling way of magma is very reasonable, it can reduce the impurities to a great extent.
5. There is automatic equipment on the magma surface, it is easy to adjust.
6. The upward one makes the magma cycle toward upward, which the downward one makes the magma cycle downward.
1. High inhalation, low power.
2. Each chute can inhale gas, sink magma, separate.
3. There is no need of accessory equipments horizontal equipment, it is easy to change the flow chart.
4. The cycling way of magma is very reasonable, it can reduce the impurities to a great extent.
5. There is automatic equipment on the magma surface, it is easy to adjust.
6. The upward one makes the magma cycle toward upward, which the downward one makes the magma cycle downward.
Flotation Machinery Specifications
| Model | Volume (m3) | Capacity (m3/min) | Impeller dia (mm) | Impeller revolution (r.p.m) | Air pressure of blower (KPa) | Max of air Filling (m3/m2) | motor power (kw) | |
| Impeller | Scraper | |||||||
| KYF-1 | 1 | 0.2~1 | 340 | 281 | ≥12.6 | 2 | 4 | 1.1 |
| KYF-1.2 | 1.2 | 0.2~1.2 | 410 | 247 | ≥12.8 | 2 | 7.5 | 1.1 |
| KYF-2 | 2 | 0.4~2 | 410 | 247 | ≥14.7 | 2 | 7.5 | 1.1 |
| KYF-3 | 3 | 0.6~3 | 480 | 219 | ≥19.8 | 2 | 7.5 | 1.5 |
| KYF-4 | 4 | 1.2~4 | 550 | 200 | ≥19.8 | 2 | 11 | 1.5 |
| KYF-8 | 8 | 3~8 | 630 | 175 | ≥21.6 | 2 | 15 | 1.5 |
| KYF-16 | 16 | 4~16 | 740 | 160 | ≥25.5 | 2 | 30 | 1.5 |
| KYF-24 | 24 | 4~24 | 800 | 150 | ≥30.4 | 2 | 30 | 1.5 |
| KYF-38 | 38 | 10~38 | 880 | 138 | ≥34.3 | 2 | 37 | 1.5 |
Notice: Any change of Flotation Machinery technical data shall not be advised additionally.
