Feeding Size: 0-50mm
Capacity: 100-520t/h
Processing materials:
Iron ore, copper ore, gold ore and silver ore, zinc ore, manganese ore, limestone、granite、basalt、river stone、coal gangue、quartz.
Mobile Crushing and Screening is a new designed rock crushing & screening plant, which is flexible, convenient and strong in mobility, so it can save a large construction capital and relocation. Raw Materials can be crushed at the local place without being transported again. And it also can be moved with the further exploitation of the raw material, which saves a large number of transportation cost.
Mobile VSI Crushers are ideal for tertiary crushing and screening applications in quarrying, mining, concrete recycling, infrastructure and construction industries. It is especially used to process raw material to excellent aggregate and sand for railway, highway, freeway and building construction.

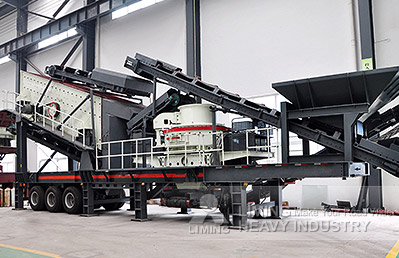

Mobile Vertical Shaft Impact Crusher Specifications
Technical Data/Model | Y3S1848V81 | Y3S1860V92 | Y3S2160V140 | |
Transportation size (mm) | 13500×2830×4350 | 15600×2830×4350 | 15600×3100×4480 | |
Weight(t) | 31 | 36 | 49 | |
Tire Configuration | Dualaxial | Dualaxial | Triaxial | |
Vertical Shaft Impact Crusher | VSI-8518 | VSI-9526 | VSI-1140 | |
The Maximum Feeding Size(mm) | 35 | 40 | 45 | |
Capacity(T/h) | 100-260 | 150-380 | 225-520 | |
Belt Conveyor Under Vibrating Screen | B800×7M | B800×8M | B1000×8M | |
Self-loaded Belt Conveyor | B800×2.2M | B800×2.5M | B1000×2.5M | |
Vibrating Screen | 3YZS1848 | 3YZS1860 | 3YZS2160 | |
Electric control | standard | control box + control panel | control box + control panel | control box + control panel |
Optional | Control box + LCD | Control box + LCD | Control box + LCD | |
Hydrau lic leg | standard | 4 | 4 | 4 |
Optional | 2 | 2 | 2 | |
Hydraulic cyclinder | standard | 0 | 0 | 0 |
optional | 2 | 2 | 2 |
Notice: Any change of Mobile Vertical Shaft Impact Crusher technical data shall not be advised additionally.
