C6X Series Jaw Crusher - Liming Heavy Industry

Home > Products > Crushing Plant > C6X Series Jaw Crusher

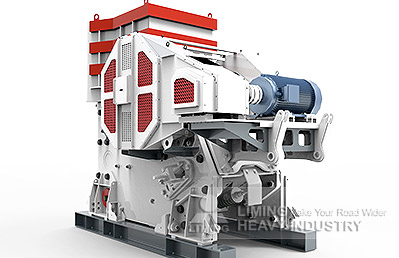

C6X Series Jaw Crusher

Feeding Size: 0-450mm
Capacity:
Processing materials：
Mining, metallurgy, construction, chemical, cement, refractory material, ceramics, etc.

[email protected]

According to well-knit processing technology and 30 years’experiences about research and development production, C6X Series Jaw Crusher was produced by optimizing structure. The equipment takes advantages of higher quality, longer life, lower cost and higher efficiency at the same energy consumption. Aiming at the hard materials, C6X Series Jaw Crusher has become typical equipment of perfect crushing because of high crushing ratio and quality wear resistant parts, which provides easier production process for customers.

C6X Series Jaw Crusher Specifications

Model		C6X110	C6X125	C6X145	C6X160	C6X200
Feed opening length(mm)		1100	1250	1450	1600	2000
Feed opening width(mm)		850	950	1100	1200	1500
Power KW(Kw)		160	160	200	250	400
Speed(rpm)		230	220	220	220	200
Dimension(mm)	Discharge opening(mm)	T/h	T/h	T/h	T/h	T/h
0-105	70
0-120	80	160-240
0-135	90	180-260
0-150	100	200-280	240-340
0-185	125	250-360	280-410	320-470
0-225	150	300-430	340-480	370-550	420-610
0-260	175	340-490	370-550	430-630	470-700	620-890
0-300	200	380-550	420-620	480-710	530-790	690-1000
0-340	225		470-690	540-790	590-880	770-1100
0-375	250		520-760	600-870	650-970	850-1200
0-410	275			660-950	700-1060	930-1300
0-450	300				750-1100	1000-1500

Notice: Any change of C6X Series Jaw Crusher technical data shall not be advised additionally.
