Feeding Size: 3-80mm
Capacity: 50-400 t/h
Processing materials:
Concrete waste, iron ore, copper ore, gold ore, manganese ore, gravel, granite, river stone, basalt, limestone, dolomite, quartz, coal, etc.

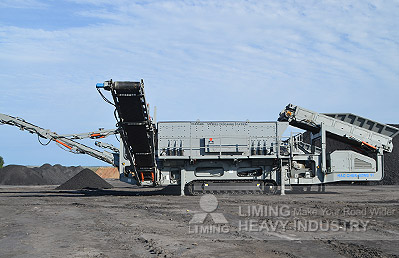

Built either as a double or triple-deck screen with or without feed hopper, as a banana screen, with finger screening surface, with rubberised perforated panels, etc. the screens are suitable for use wherever high outputs are required and where difficult to screen material has to be separated.
The screens are all diesel-electric driven and are particularly suitable for combined operation with an upstream Liming crusher. The performance range for mobile screens nowadays extends to 1,000 t/h depending on the type and composition of the feed material and the grading ranges to be screened.
Mobile Vibrating Screen Specifications
Technical Data//Model | Y3S1848 | Y3S1860 | Y3S2160 | |
Transportation size (mm) |
10100×2800×4350 |
11100×2820×4350 |
11100×3100×4350 |
|
Weight(t) | 16 | 18 | 19 | |
Tire Configuration | Dualaxial | Dualaxial | Dualaxial | |
Capacity(T/h) | 50-250 | 60-300 | 80-400 | |
Belt Conveyor Under Vibrating Screen | B800×7M | B800×8M | B1000×8M | |
Vibrating Screen | 3YZS1848 | 3YZS1860 | 3YZS2160 | |
Electric control | standard | control box + control panel | control box + control panel | control box + control panel |
Optional | Control box + LCD | Control box + LCD | Control box + LCD | |
Hydraulic leg | standard | 4 | 4 | 4 |
Optional | 2 | 2 | 2 | |
Hydraulic cyclinder | standard | 0 | 0 | 0 |
optional | 2 | 2 | 2 | |
Genset (optional) (Kw) | 120 | 120 | 120 |
Note:Any change of technical data shall not be advised additionally.
Notice: Any change of Mobile Vibrating Screen technical data shall not be advised additionally.
