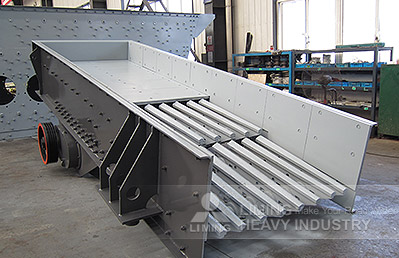

TSW series vibrating feeder
Feeding Size: 0-1150 mm
Capacity: 130-650t/h
Processing materials：
Building materials, mining, chemical industry, cement and other industrial departments.
TSW series vibrating feeder summarizing the design, production, sales and service experience in the mining industry for many years, TSW series vibrating feeder is our company’s new efficient feeder which combines with the development of modern industrial technology, extensively absorbs foreign advanced technology and independent research and development and design.
TSW series vibrating feeder Specifications
| Model | Maximum feed size (mm) | Capacity (t/h) | Rotation speed (rpm) | Groove size (mm) | Weight(t) | Dimension(mm) |
| TSW0936 | 500 | 130-280 | 750-900 | 960×3600 | 3.95 | 3680X2136 X1953 |
| TSW1139 | 600 | 150-350 | 750-900 | 1100×3900 | 4.32 | 3980X2276X1953 |
| TSW1345 | 700 | 250-450 | 750-900 | 1300×4500 | 4.97 | 4580×2570×1980 |
| TSW1548 | 850 | 350-650 | 750-900 | 1500×4800 | 6.57 | 4880X2832X2044 |
Form 1: TSW series vibrating feeder technical specification
| Model | V-belt | Motor | VFD (KW) |
Feeder driven wheel diameter (mm) |
Motor wheel diameter (mm) |
||
| Model | Qty. | Model | Power (KW) | ||||
| TSW0936 | SPC2800 | 3 | Y2-160L-4 | 15(20) | 15 | Φ420 | Φ244.6 |
| TSW1139 | SPC2800 | 3 | Y2-160L-4 | 15(20) | 15 | Φ420 | Φ244.6 |
| TSW1345 | SPC2800 | 3 | Y2-180L-4 | 22(30) | 22 | Φ420 | Φ244.6 |
| TSW1548 | SPC2800 | 4 | Y2-200L-4 | 30(40) | 30 | Φ530 | Φ290 |
Notice: Any change of TSW series vibrating feeder technical data shall not be advised additionally.
