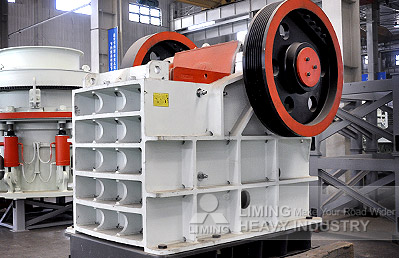

HJ Series High Efficiency Jaw Crusher

Home > Products > Crushing Plant > HJ Series High Efficiency Jaw Crusher

Feeding Size: 560-800 mm
Capacity: 170-650t/h
Processing materials：
Iron ore, copper ore, gold ore, manganese ore, river stone, gravel, granite, basalt, minerals, quartz, diabase, etc..

[email protected]

According to the actual needs of customer, on the basis of introducing and absorbing advanced technology at home and abroad, our company designs a modern high performance crusher, HJ series high efficiency jaw crusher. It is based on the design concept of low input - high output, integrating the characteristics of low power - high productivity. Practice has proved that HJ series jaw crusher, with its excellent performance, reliable quality and high cost-effective, has won the trust of customers around the world, being an ideal upgrade alternative of the traditional jaw crusher. Mobile jaw crusher available

HJ Series High Efficiency Jaw Crusher Specifications

Model	HJ98	HJ110	HJ125
Input opening size (mm)	650×980	800×1100	950×1250
Max feeding particle size (mm)	560	660	800
Adjustment range of discharging (mm)	100-200	100-200	125-225
capacity (t/h)	170-410	215-510	306-650
Rotation speed of eccentric shaft (r/min)	270	260	230
Motor power (kW)	90/125	110/150	132/175
Overall dimension (mm)	2470×2000×2180	2875×2472×2530	3320×2600×3120

Diagram 2 supporting equipments parameter

Model	HJ98	HJ110	HJ125
Electromotor	Y315L1-8	Y315L2-8	Y335M1-8
Hydraulic jack	RC-10T	RC-10T	RC-15T
Electric cabinet	90 /110 Kw	110/132Kw	132/160Kw

Diagram 3 capacity data

Model	HJ98	HJ110	HJ125
Capacity (t/h)	170-410	215-510	306-650

Notice: Any change of HJ Series High Efficiency Jaw Crusher technical data shall not be advised additionally.
