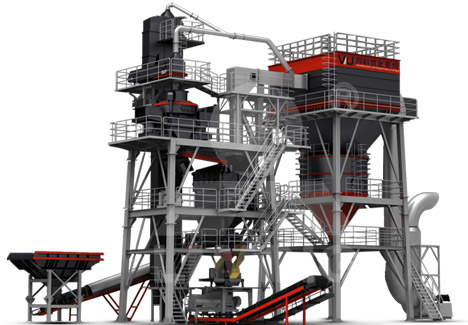

Liming VU dry process of sand and gravel aggregate system with the most reasonable, greatest degree reproduce naturally in the process of natural sand formed broken, erosion action such as friction, natural washing, make product sand performance is improved. - 15 mm raw materials (can be stone chips, pea stone and other cheap accessible raw materials such as stone) after dealing with the VU system is reasonable and efficient, reasonable distribution, grain output fruity, controllable sand powder content, as well as dry clean, can undertake unity recycled high value-added powder (determined according to the raw material can be used).
Advantages
It is generally accepted that 2-area medium size sand is the better choice for making concrete because of its good shape and appropriate size. To the contrary, due to the large content of coarse sand and sand powder and small quantity of fine sand, the normal machine-making sand can not meet the standard of the 2-area medium size sand. When using it to make the concrete, it will lead to large quantity of cement paste and poor peaceability.
Liming VU gravel aggregate system can well control the sand gradation curve in grading area 2. When compounding concrete with the same cement, the production mechanism of Liming VU gravel aggregate system could help you with a higher strength which greatly meet the sand requirements on various kinds of concrete and dry-mixed mortar.
Advantages
1.Good Particle Shape
The output shape can rival natural sand (Real product rate can be 58%-59%).
Liming VU dry process of sand and gravel aggregate system with the most reasonable, greatest degree reproduce naturally in the process of natural sand formed broken, erosion action such as friction, natural washing, make product sand performance is improved. - 15 mm raw materials (can be stone chips, pea stone and other cheap accessible raw materials such as stone) after dealing with the VU system is reasonable and efficient, reasonable distribution, grain output fruity, controllable sand powder content, as well as dry clean, can undertake unity recycled high value-added powder (determined according to the raw material can be used).
2.Low Consuming Cost
New innovated technology combines performance and technology of equipment reasonably, realizes low consuming cost.
3.Adjustable Fineness
The fineness is adjustable easily.
4.Precise Grading
The grading is more precise than before. By using water mixing machine wet sand can be produced.5.Dust-proof and Environmental
Full enclosed structure prevents the dust from leaking out. With no noise nor pollutant discharge, the dust-proof is absolutely of no risk at all.
It is generally accepted that 2-area medium size sand is the better choice for making concrete because of its good shape and appropriate size. To the contrary, due to the large content of coarse sand and sand powder and small quantity of fine sand, the normal machine-making sand can not meet the standard of the 2-area medium size sand. When using it to make the concrete, it will lead to large quantity of cement paste and poor peaceability.
Liming VU gravel aggregate system can well control the sand gradation curve in grading area 2. When compounding concrete with the same cement, the production mechanism of Liming VU gravel aggregate system could help you with a higher strength which greatly meet the sand requirements on various kinds of concrete and dry-mixed mortar.
VU System Equipment Specifications
| Model | Parameter Name | ||||
| Feeding Size(mm) | Raw Material Feeding (t/h) | Capacity(t/h) | Powder Content (adjustable) | Installed Power(Kw) | |
| VU-70 | 0-15 | 65-70 | 55-60 | 3-15% | 450 |
| VU-120 | 0-15 | 110-120 | 95-105 | 3-15% | 830 |
Notice: Any change of VU System Equipment technical data shall not be advised additionally.
