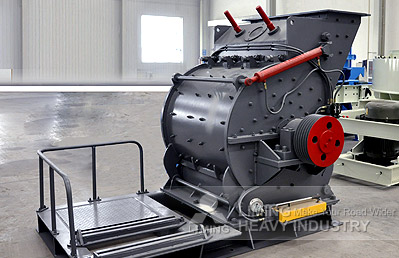

European Type Coarse Powder Mill
Feeding Size: 70-100 mm
Capacity: 35-100 t/h
Processing materials：
Limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate, manganese ore, quartz, active carbon etc.
The european type coarse powder hammer mill is widely used to crush mineral ores mediumly or finely with compressive stress below 320Mpa in industries like metallurgy, mining, chemicals, cement, construction, refractory, ceremic, etc.
1. big crushing ratio and large capacity;
2. Low consumption and even granule;
3. simple design and compact structure;
4. modest investment and easy management.
1. big crushing ratio and large capacity;
2. Low consumption and even granule;
3. simple design and compact structure;
4. modest investment and easy management.
European Type Coarse Powder Mill Specifications
| Model | Length of the rotor (mm) | Diameter of the rotor (mm) | Rotation speed of the rotor (mm) | Max. input size (mm) | Max. Output size (mm) | Capacity (t/h) | Motor power (kW) | Dimension (piece) | (L×W×H/mm) |
| CM4008 | 750 | 800 | 800-1000 | <70 | 0-3 | 35-40 | 75 | 18 | 2130×1665×1610 |
| CM4012 | 900 | 1200 | 800-1000 | <90 | 0-3 | 50-70 | 90 | 16 | 2840×2100×2020 |
| CM4015 | 1150 | 1500 | 550-800 | <100 | 0-3 | 70-100 | 132 | 32 | 3720×2650×2540 |
Notice: Any change of European Type Coarse Powder Mill technical data shall not be advised additionally.
