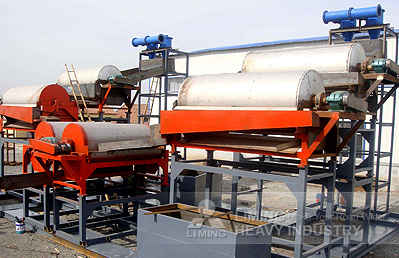

Magnetic Separator
Feeding Size: 0-3 mm
Capacity: 75-410 t/h
Processing materials：
Magnetic separator is used for particle size below 3mm magnetite, pyrrhotite, roasted ore, ilmenite and other materials wet magnetic separator, and also for coal, non-metallic minerals, building materials and other materials iron remover.
Magnetic separator is used for sorting magnetic minerals or removing non-magnetic minerals mixed in the magnetic minerals.
Magnetic Separator is one kind of efficient equipment for processing fine, feebly magnetic minerals, such as hematite, limonite, wolfram, ilmenite, and tantalum-niobium, etc..
Magnetic Separator is one kind of efficient equipment for processing fine, feebly magnetic minerals, such as hematite, limonite, wolfram, ilmenite, and tantalum-niobium, etc..
Magnetic Separator Specifications
| Model | Roller size (Dia*length)(mm) | Magnetic Field Strength(mT) | Handle size (mm) | Rotation speed of the drum r/min | Processing capacity (t/h) | Motor powder (kw) | Weight (t) |
| CT718 | 700×1800 | 250-450 | ≤20 | 30-50 | 75 | 3 | 1.8 |
| CT722 | 700×2200 | 100 | 3 | 2 | |||
| CT724 | 700×2400 | 125 | 4 | 2.2 | |||
| CT726 | 700×2600 | 135 | 4 | 2.4 | |||
| CT818 | 800×1800 | 100 | 4 | 2.1 | |||
| CT822 | 800×2200 | 140 | 4 | 2.4 | |||
| CT824 | 800×2400 | 180 | 5.5 | 2.6 | |||
| CT826 |
800×2600 |
220 | 5.5 | 2.8 | |||
| CT918 | 900×1800 | 150 | 4 | 2.4 | |||
| CT922 | 900×2200 | 200 | 4 | 2.8 | |||
| CT924 | 900×2400 | 250 | 5.5 | 3.1 | |||
| CT926 | 900×2600 | 300 | 5.5 | 3.3 | |||
| CT1015 | 970×1500 | 200 | 5.5 | 2.5 | |||
| CT1018 | 970×1800 | 260 | 5.5 | 3 | |||
| CT1022 | 970×2200 | 320 | 7.5 | 3.5 | |||
| CT1024 | 970×2400 | 350 | 7.5 | 4 | |||
| CT1026 | 970×2600 | 410 | 7.5 | 4.25 |
CTB Wet Magnetic Drum Separator Specification:
| Model | Drum data | Magnetic induction intensity of drum surface mT | Handling Capacity | Motor power kw | Rotation speed r/min | Weight kg | ||
| Dia mm | L mm | t/h | m³/h | |||||
| CTB-618 | 600 | 1800 | Depends on material character (60-550mT) | 15-30 | 40-80 | 2.2 | 40 | 1340 |
| CTB-718 | 750 | 1800 | 20-45 | 60-100 | 3 | 35 | 2100 | |
| CTB-918 | 900 | 1800 | 25-40 | 70-120 | 4 | 28 | 2900 | |
| CTB-1018 | 1050 | 1800 | 45-60 | 110-160 | 5.5 | 22 | 4000 | |
| CTB-1021 | 1050 | 2100 | 50-70 | 140-200 | 5.5 | 22 | 4500 | |
| CTB-1024 | 1050 | 2400 | 60-80 | 170-260 | 5.5 | 22 | 5000 | |
| CTB-1030 | 1050 | 3000 | 80-120 | 240-380 | 7.5 | 22 | 6300 | |
| CTB-1218 | 1200 | 1800 | 60-75 | 160-260 | 11 | 17 | 5000 | |
| CTB-1224 | 1200 | 2400 | 80-110 | 240-330 | 11 | 17 | 5900 | |
| CTB-1230 | 1200 | 3000 | 100-140 | 260-460 | 11 | 17 | 7200 | |
| CTB-1236 | 1200 | 3600 | 120-160 | 300-550 | 15 | 17 | 8200 | |
| CTB-1240 | 1200 | 4000 | 130-170 | 330-600 | 15 | 17 | 9200 | |
| CTB-1245 | 1200 | 4500 | 150-200 | 380-660 | 15 | 17 | 11000 | |
| CTB-1530 | 1500 | 3000 | 100-180 | 290-480 | 11 | 14 | 9900 | |
| CTB-1540 | 1500 | 4000 | 150-200 | 300-540 | 15 | 14 | 12000 | |
| CTB-1545 | 1500 | 4500 | 180-240 | 400-650 | 18.5 | 14 | 15000 | |
| CTB-1550 | 1500 | 5000 | 210-280 | 500-750 | 18.5 | 14 | 18000 | |
| CTB-1824 | 1800 | 2400 | 100-140 | 260-460 | 15 | 14 | 9100 | |
| CTB-1830 | 1800 | 3000 | 140-190 | 350-560 | 18.5 | 14 | 12300 | |
| CTB-1840 | 1800 | 4000 | 200-260 | 400-650 | 30 | 14 | 18500 | |
| CTB-1850 | 1800 | 5000 | 280-320 | 550-800 | 37 | 14 | 25000 | |
Notice: Any change of Magnetic Separator technical data shall not be advised additionally.
